To enable communication between different components of the application or between separate services In .NET Core, we can configure and communicate with message queues. It provides a reliable and scalable way for different parts of a system to exchange information asynchronously. Common message queue systems include RabbitMQ, Apache Kafka, Azure Service Bus, and AWS Simple Queue Service (SQS).
Let's explore a general outline of how to configure and communicate with a message queue in a .NET Core API:
1. Choose a Message Queue Provider:
Select a message queue provider that suits your application requirements. Some popular options include:
- RabbitMQ: A widely-used open-source message broker.
- Apache Kafka: A distributed streaming platform.
- Azure Service Bus: A fully managed message broker service in Microsoft Azure.
- AWS SQS: A fully managed message queuing service in Amazon Web Services.
2. Install the Required NuGet Packages:
Install the necessary NuGet packages for the chosen message queue provider. For example, if you're using RabbitMQ, you can use the `RabbitMQ.Client` package:
dotnet add package RabbitMQ.Client
3. Configure the Message Queue Connection:
In your .NET Core API project, configure the connection settings for the message queue. This includes specifying the host, port, credentials, and other relevant configuration details. This is typically done in the `Startup.cs` file:
// Example configuration for RabbitMQ
services.AddSingleton<IMessageQueueConnection>(provider =>{
var factory = new ConnectionFactory {
HostName = Configuration["MessageQueue:HostName"],
UserName = Configuration["MessageQueue:UserName"],
Password = Configuration["MessageQueue:Password"]
};
return new RabbitMQConnection(factory);
});
4. Implement Message Queue Producer:
Create a message queue producer to send messages to the queue. This can be part of your business logic or a separate service:
public class MessageQueueProducer
{
private readonly IMessageQueueConnection _messageQueueConnection;
public MessageQueueProducer(IMessageQueueConnection messageQueueConnection)
{
_messageQueueConnection = messageQueueConnection;
}
public void SendMessage(string message)
{
using (var channel = _messageQueueConnection.CreateModel())
{
channel.QueueDeclare(queue: "my_queue", durable: false, exclusive: false, autoDelete: false, arguments: null);
var body = Encoding.UTF8.GetBytes(message);
channel.BasicPublish(exchange: "", routingKey: "my_queue", basicProperties: null, body: body);
}
}
}
5. Implement Message Queue Consumer:
Create a message queue for consumers to receive and process messages. This can be a background service or part of your application:
public class MessageQueueConsumer
{
private readonly IMessageQueueConnection _messageQueueConnection;
public MessageQueueConsumer(IMessageQueueConnection messageQueueConnection)
{
_messageQueueConnection = messageQueueConnection;
}
public void ConsumeMessages()
{
using (var channel = _messageQueueConnection.CreateModel())
{
channel.QueueDeclare(queue: "my_queue", durable: false, exclusive: false, autoDelete: false, arguments: null);
var consumer = new EventingBasicConsumer(channel);
consumer.Received += (model, ea) =>
{
var body = ea.Body.ToArray();
var message = Encoding.UTF8.GetString(body);
// Process the message
Console.WriteLine($"Received message: {message}");
};
channel.BasicConsume(queue: "my_queue", autoAck: true, consumer: consumer);
}
}
}
6. Use Dependency Injection to Inject and Use the Message Queue Components:
Inject the message queue producer and consumer into your controllers, services, or other components where you want to send or receive messages:
public class MyController : ControllerBase
{
private readonly MessageQueueProducer _messageQueueProducer;
public MyController(MessageQueueProducer messageQueueProducer)
{
_messageQueueProducer = messageQueueProducer;
}
[HttpPost("send-message")]
public IActionResult SendMessage([FromBody] string message)
{
_messageQueueProducer.SendMessage(message);
return Ok("Message sent to the queue.");
}
}
7. Start the Consumer:
If your consumer is a long-running background service, make sure to start it during the application startup:
public class Startup
{
public void ConfigureServices(IServiceCollection services)
{
// Other configurations...
services.AddSingleton<MessageQueueConsumer>();
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env, MessageQueueConsumer messageQueueConsumer)
{
// Other configurations...
messageQueueConsumer.ConsumeMessages();
}
}

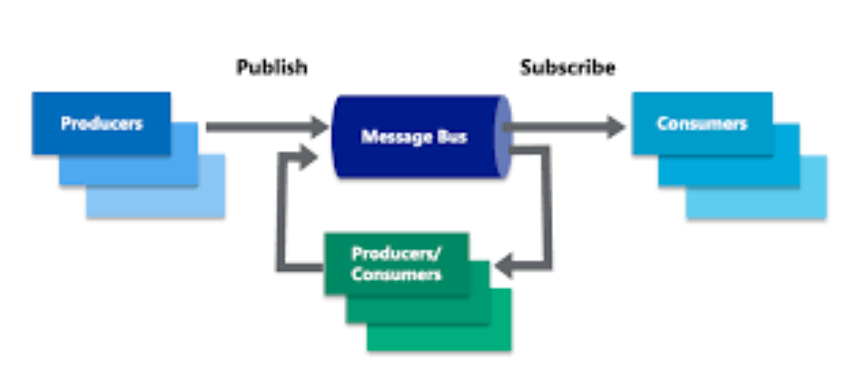

In a typical messaging system, the consumer does not directly know when a producer has published a message. Instead, the consumer is designed to subscribe to a specific message queue or topic, and it continuously listens for incoming messages. When a producer publishes a message to that queue or topic, the message broker delivers the message to all subscribed consumers. The consumers, in turn, process the incoming messages.
Here's a high-level overview of the process:
1. Producer Publishes Message:
- The producer creates a message and publishes it to a specific message queue or topic provided by the message broker.
2. Message Broker Delivers Message:
- The message broker (e.g., RabbitMQ, Apache Kafka, etc.) is responsible for delivering the message to all consumers that are subscribed to the corresponding queue or topic.
3. Consumer Receives and Processes Message:
- The consumer, which has previously subscribed to the queue or topic, receives the published message from the message broker. The consumer's logic then processes the message as needed.
In this communication model, the consumer is continuously listening for messages on the subscribed queue or topic, and it doesn't actively receive notifications from the producer. The producer and consumer are decoupled through the message broker, allowing for asynchronous communication.
If you need to implement a mechanism where the producer knows when a specific message has been processed by a consumer, you might consider using an acknowledgment mechanism. In this case, the consumer acknowledges the successful processing of a message back to the message broker, and the producer can monitor these acknowledgments.
It's important to note that the exact mechanisms and features may vary depending on the message broker you are using. For example:
- RabbitMQ: Uses acknowledgments (ACK) to confirm the delivery and processing of a message.
- Apache Kafka: Maintains offsets, allowing consumers to track their progress in consuming messages.
- Azure Service Bus: Supports message deferral and dead-lettering for handling messages that require special attention.
Always refer to the documentation of the specific message broker you're using for detailed information on its features and capabilities. Note:
- The examples above are simplified and may need to be adapted based on the specific message queue provider you choose.
- It's important to handle exceptions and edge cases appropriately in a production application.
- Consider using a hosted service or background worker for the message queue consumer if it needs to run continuously.
- Ensure that you manage connection lifetimes and resources correctly.
Remember to refer to the documentation of the specific message queue provider you are using for more detailed and provider-specific instructions.
Domain events with MSMQ
Domain events can be used with Message Queues like MSMQ to implement a publish-subscribe pattern where components of a system can communicate asynchronously. In a typical scenario, when an event occurs within a domain, a message is published to a message queue, and interested subscribers (consumers) receive and process these messages. Here's a high-level overview of how domain events work with MSMQ:
1. Define Domain Events:
In your application, define domain events that represent meaningful occurrences within your domain. These events typically contain information about what happened. For example:
public class OrderPlacedEvent
{
public Guid OrderId { get; set; }
public DateTime OrderDate { get; set; }
// Other relevant properties...
}
2. Raise Domain Events:
When relevant actions occur within your application that should trigger events, raise (publish) those events. This is typically done within your domain logic:
public class OrderService
{
private readonly IMessageQueuePublisher _messageQueuePublisher;
public OrderService(IMessageQueuePublisher messageQueuePublisher)
{
_messageQueuePublisher = messageQueuePublisher;
}
public void PlaceOrder(Order order)
{
// Perform order placement logic...
// Publish the OrderPlacedEvent
var orderPlacedEvent = new OrderPlacedEvent
{
OrderId = order.Id,
OrderDate = order.OrderDate
};
_messageQueuePublisher.Publish(orderPlacedEvent);
}
}
3. Implement Message Queue Publisher:
Create a component responsible for publishing events to the message queue. This component abstracts the details of interacting with MSMQ:
public interface IMessageQueuePublisher
{
void Publish<TEvent>(TEvent domainEvent);
}
public class MsmqPublisher : IMessageQueuePublisher
{
public void Publish<TEvent>(TEvent domainEvent)
{
// Logic to publish the event to MSMQ
// ...
}
}
4. Subscribe to Domain Events:
Implement subscribers (consumers) who listen for specific domain events on the message queue. These subscribers process the events when they arrive:
public class OrderPlacedSubscriber : IMessageQueueSubscriber<OrderPlacedEvent>
{
public void Handle(OrderPlacedEvent domainEvent)
{
// Logic to handle the OrderPlacedEvent
// ...
}
}
5. Implement Message Queue Subscriber:
Create a component responsible for subscribing to messages from the message queue and dispatching them to the appropriate event handlers:
public interface IMessageQueueSubscriber<TEvent>
{
void Handle(TEvent domainEvent);
}
public class MsmqSubscriber<TEvent> : IMessageQueueSubscriber<TEvent>
{
public void Handle(TEvent domainEvent)
{
// Logic to handle the received event
// ...
}
}
6. Configure Message Queue:
Ensure that your application is configured to use MSMQ as the message queue provider. This includes setting up queues, permissions, and other relevant configurations.
7. Start Subscribers:
Start the message queue subscribers during the application startup to begin listening for events:
public class Startup
{
public void ConfigureServices(IServiceCollection services)
{
// Other configurations...
services.AddSingleton<IMessageQueueSubscriber<OrderPlacedEvent>, MsmqSubscriber<OrderPlacedEvent>>();
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
// Other configurations...
var orderPlacedSubscriber = app.ApplicationServices.GetRequiredService<IMessageQueueSubscriber<OrderPlacedEvent>>();
orderPlacedSubscriber.StartListening();
}
}
Note:
- The specific details of how to interact with MSMQ and configure your application depend on the libraries and frameworks you are using.
- Ensure that proper error handling and retry mechanisms are implemented, especially when dealing with message queues in distributed systems.
- MSMQ might not be the only choice; other message queue solutions like RabbitMQ, Apache Kafka, or Azure Service Bus may better suit your specific requirements.
This approach provides a decoupled and scalable way for different parts of your system to react to events without being directly aware of each other.
Integration events working with MSMQ
Integration events, in the context of a distributed system, are events that are used to communicate between different microservices or components. MSMQ (Microsoft Message Queuing) can be used as the message queue infrastructure to facilitate the communication of integration events between various parts of a system. Here's a high-level overview of how integration events work with MSMQ:
1. Define Integration Events:
Similar to domain events, define integration events that represent significant occurrences within the system. Integration events typically have a broader scope and are used for inter-service communication. For example:
public class OrderPlacedIntegrationEvent
{
public Guid OrderId { get; set; }
public DateTime OrderDate { get; set; }
// Other relevant properties...
}
2. Publish Integration Events:
When an action occurs that should trigger an integration event, publish (send) that event to the MSMQ:
public class OrderService
{
private readonly IMessageQueuePublisher _messageQueuePublisher;
public OrderService(IMessageQueuePublisher messageQueuePublisher)
{
_messageQueuePublisher = messageQueuePublisher;
}
public void PlaceOrder(Order order)
{
// Perform order placement logic...
// Publish the OrderPlacedIntegrationEvent
var orderPlacedIntegrationEvent = new OrderPlacedIntegrationEvent
{
OrderId = order.Id,
OrderDate = order.OrderDate
};
_messageQueuePublisher.Publish(orderPlacedIntegrationEvent);
}
}
3. Implement Message Queue Publisher:
Create a component responsible for publishing integration events to MSMQ. This component abstracts the details of interacting with MSMQ:
public interface IMessageQueuePublisher
{
void Publish<TEvent>(TEvent integrationEvent);
}
public class MsmqPublisher : IMessageQueuePublisher
{
public void Publish<TEvent>(TEvent integrationEvent)
{
// Logic to publish the integration event to MSMQ
// ...
}
}
4. Subscribe to Integration Events:
Implement subscribers (consumers) that listen for specific integration events on the MSMQ. These subscribers process the events when they arrive:
public class OrderPlacedIntegrationEventSubscriber : IMessageQueueSubscriber<OrderPlacedIntegrationEvent>
{
public void Handle(OrderPlacedIntegrationEvent integrationEvent)
{
// Logic to handle the OrderPlacedIntegrationEvent
// ...
}
}
5. Implement Message Queue Subscriber:
Create a component responsible for subscribing to messages from the MSMQ and dispatching them to the appropriate integration event handlers:
public interface IMessageQueueSubscriber<TEvent>
{
void Handle(TEvent integrationEvent);
}
public class MsmqSubscriber<TEvent> : IMessageQueueSubscriber<TEvent>
{
public void Handle(TEvent integrationEvent)
{
// Logic to handle the received integration event
// ...
}
}
6. Configure MSMQ:
Ensure that your application is configured to use MSMQ as the message queue provider. This includes setting up queues, permissions, and other relevant configurations.
7. Start Subscribers:
Start the MSMQ subscribers during the application startup to begin listening for integration events:
public class Startup
{
public void ConfigureServices(IServiceCollection services)
{
// Other configurations...
services.AddSingleton<IMessageQueueSubscriber<OrderPlacedIntegrationEvent>, MsmqSubscriber<OrderPlacedIntegrationEvent>>();
}
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
// Other configurations...
var orderPlacedIntegrationEventSubscriber = app.ApplicationServices.GetRequiredService<IMessageQueueSubscriber<OrderPlacedIntegrationEvent>>();
orderPlacedIntegrationEventSubscriber.StartListening();
}
}
Note:
- The specific details of how to interact with MSMQ and configure your application depend on the libraries and frameworks you are using.
- Ensure proper error handling and retry mechanisms, especially when dealing with message queues in distributed systems.
- MSMQ might not be the only choice; other message queue solutions like RabbitMQ, Apache Kafka, or Azure Service Bus may better suit your specific requirements.
This approach provides a way for different microservices or components in your system to communicate asynchronously through integration events, enabling a loosely coupled and scalable architecture.
